The Variant Navigator

    The variant navigator is only accessible in the implicit variant mode.

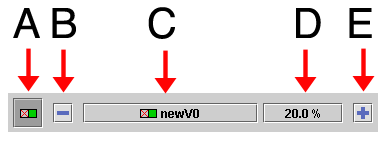

Variant navigator

   The purpose of the variant navigator is to let you scan and visually examine your product variants. To enable the variant navigator, simply click the Variant Button A (accessible in both the Operations and the Workstation tab), the other buttons of the variant navigator will appear. The B and E buttons are used to change the displayed variant. The C field indicates the name, and the D field the percentage (frequency of occurrence in the product mix) of the variant currently shown. To edit the variant properties click the C button, this will show the Edit Variant Dialog.

   When the variant mode is activated, the Operations Tab and the Workstation Tab display the current variant.

• To learn more on how to edit operation variants click here.
• To learn more about the operation graphical representation in the Operation Tab click here.
• To learn more about the operation graphical representation in the Workstation Tab click here.
